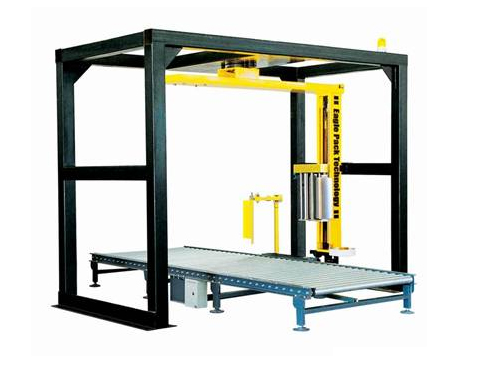

    R1800FZ-PL automatic online rotary arm stretch wrap machine

    Ask Lasest Price
    Brand Name : china coal
    Certification : MA, ISO9001, CE
    Price : CONSULTATIVE
    Delivery Time : 7 days
    Payment Terms : TT/LC/Western Union
    Supply Ability : 5000/month
    • Product Details
    • Company Profile

    R1800FZ-PL automatic online rotary arm stretch wrap machine

    automatic online rotary arm stretch wrap machine Introduction:

    R1800FZ-PL automatic online rotary arm stretch wrapping machine
    1.Driven:Electric&Pneumatic
    2.Max load capacity:floor capacity


    The machine is fully automatic stretch wrap system that arm rotates around the load, specially for unstable or very high loads and extremely heavy loads because the pallet can be placed on the conveyor line under the wrappers.It keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film. When using rotary tower machines, the load is wrapped while it sits on a conveyor line.


    automatic online rotary arm stretch wrap machine parameter:


    Model

    R1800FZ-PL

    Wrap size (L×W)

    (500-1300)mm×(500-1200)mm

    Wrap height (max)

    1800mm

    Rotary speed

    Standard

    0-15rpm adjustable >30 Pallets/Hour

    High speed

    0-25rpm adjustable >45 Pallets/Hour

    Super speed

    0-35rpm adjustable >60 Pallets/Hour

    Film carriage

    Power pre-Stretch system up to 350% with adjustbale speed

    Cut & clamp unit

    Pneumatic

    Pneuamtic system

    0.6-0.8Mpa ,1000ml/min

    Lift system

    Lift speed adjustable

    Converyor

    Height:400mm Speed:8-15m/min Load-bearing:2000kg

    Control system

    PLC control,wrap layers adjustable,photo-eyes auto-height sensing

    Safty system

    Grid guard and strike-proof protect system

    Machine size (L×W×H)

    4000mm×2000mm×4300mm(without coneyor)

    Power/voltage

    Rotary arm:0.75kw Film carriage:0.37kw Lift system: 0.37kw/AC380V
